SPECIFICATIONS

Advantage: High Efficiency

Brand: zeko

Brand Name: HAOYUNMA

Color: Silver

Function: Vacuum Seal Food Packing Machine

Hign-concerned Chemical: None

MOQ: 1 Set

Material: Stainless Steel

Origin: Mainland China

Package: Standard Wooden Case

Power (W): 400w

Showroom Location: Canada, Ukraine

Type: Vacuum Packing Machine

Usage: Food Vacuum Package

Voltage: 220 V

Warranty of core components: 1 Year

Weight: 600 KG

core components: Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

key selling points: Easy to Operate

machinery test report: Provided

name: Automatic continuous type vacuum packing machine

packaging material: Plastic, paper, metal, Glass, Wood

packaging type: Film

place of origin: Shandong, China

video outgoing-inspection: Provided

warranty: 1 Year

Hello, dear customer, this product is a customised product, the price will vary depending on your needs. If you take a photo directly, it will not be shipped to you by default. Please consult customer service for details.

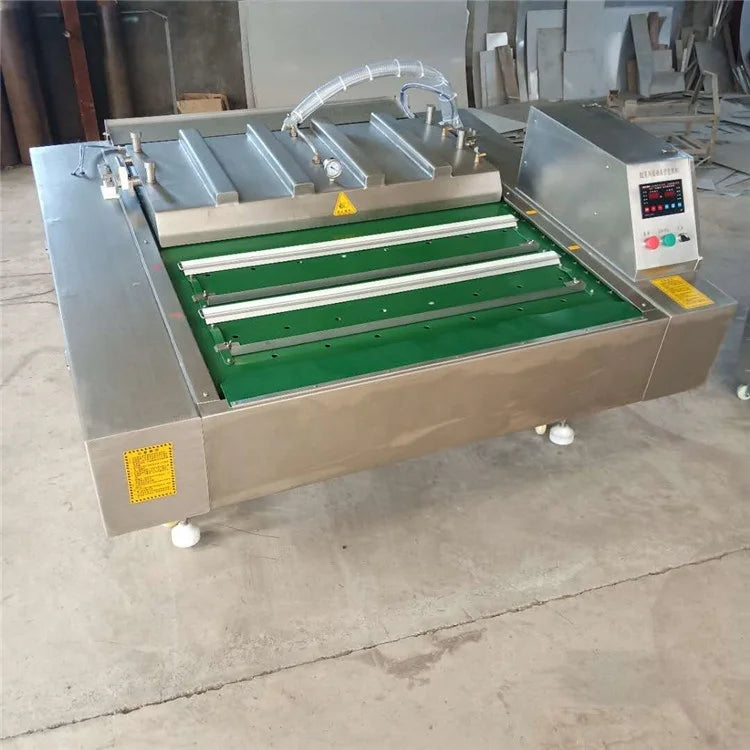

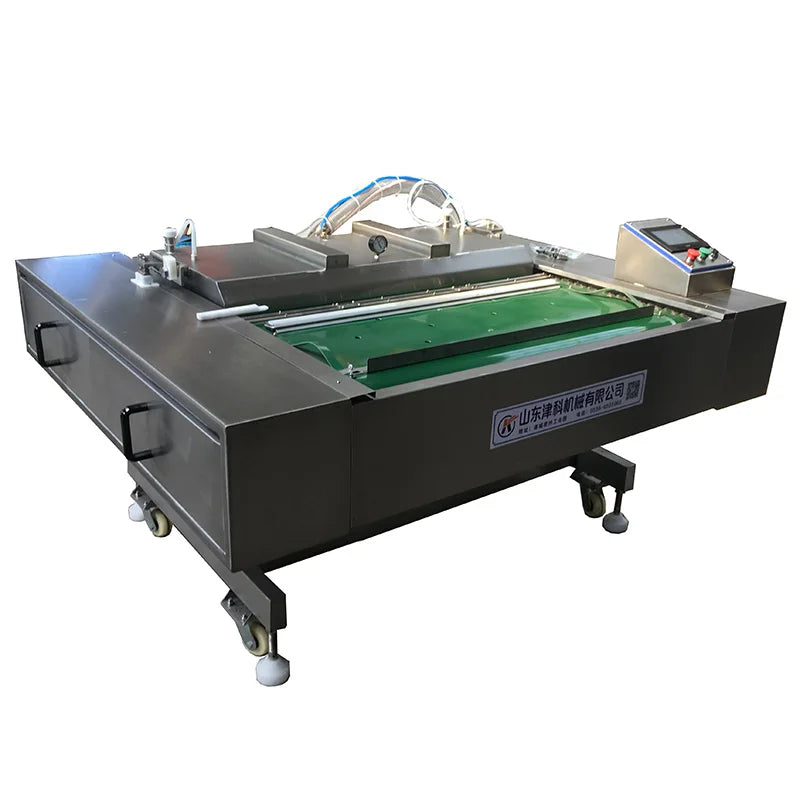

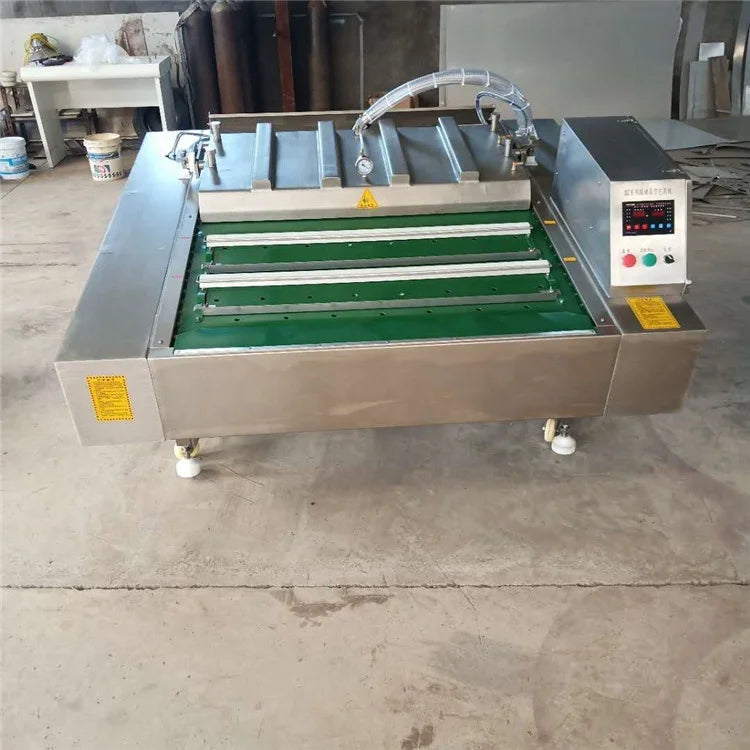

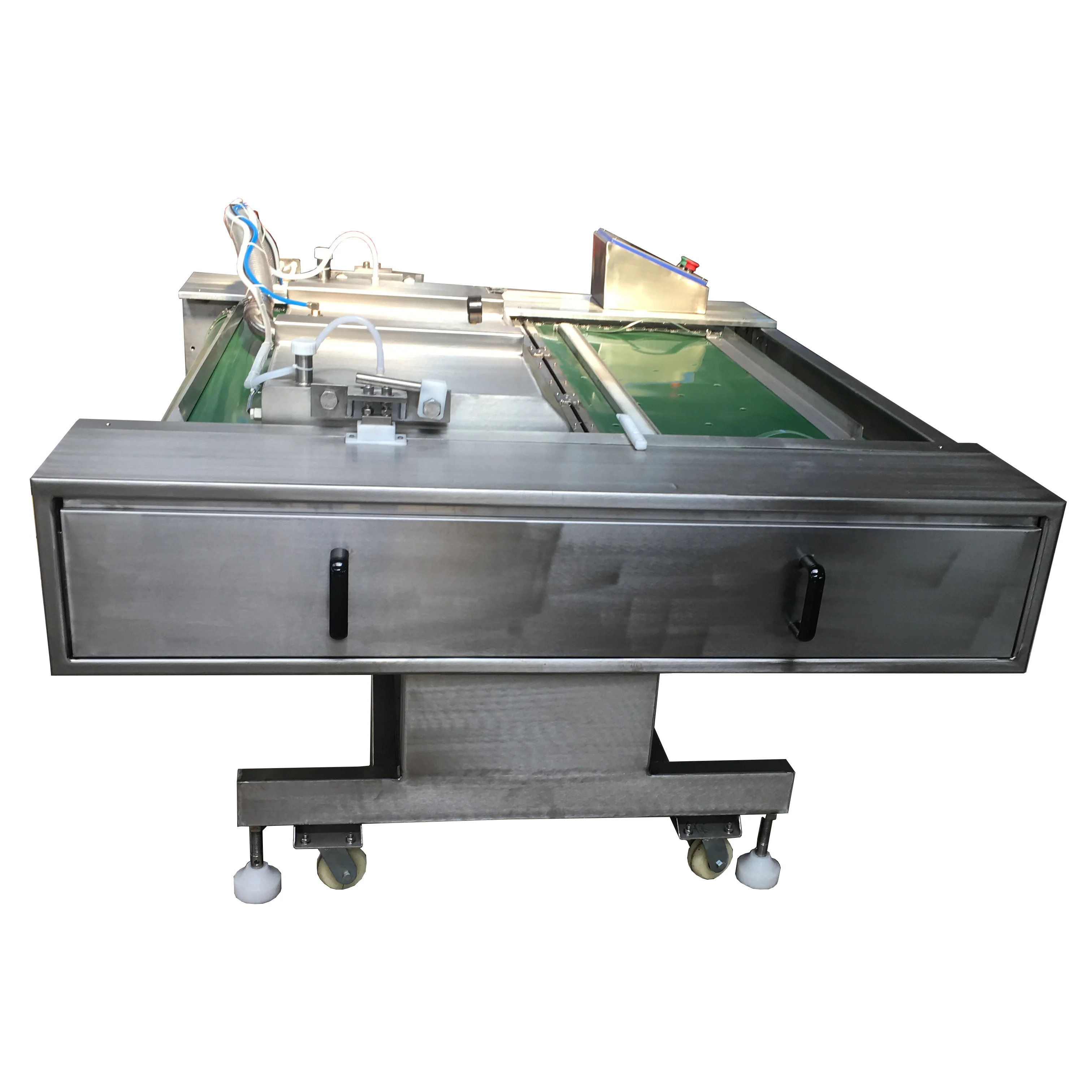

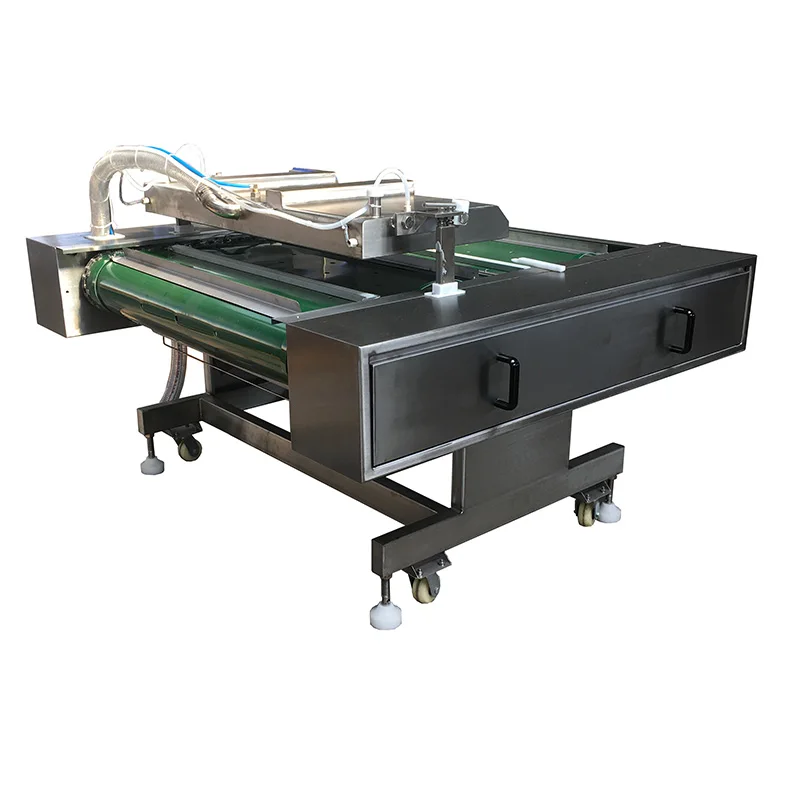

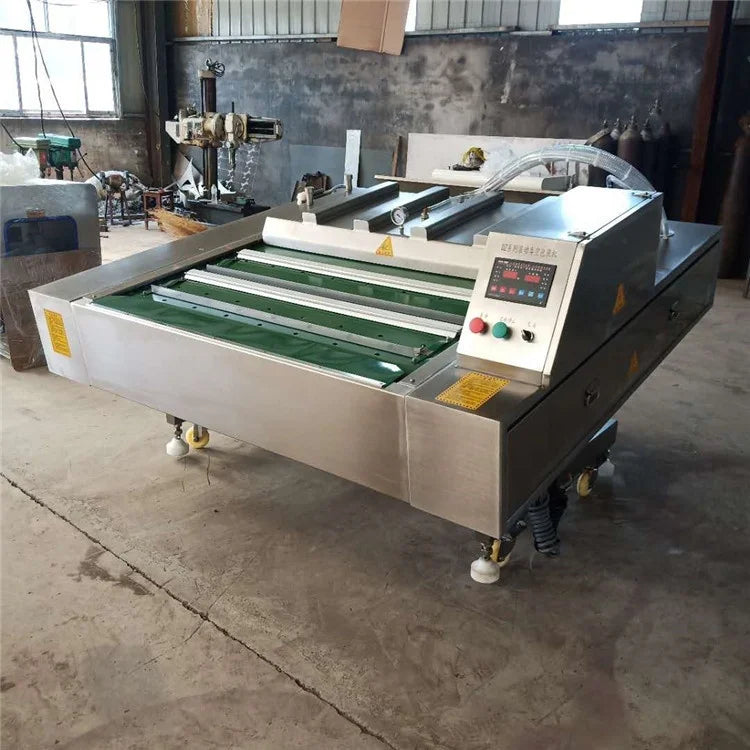

Continuous packing machine

Continuous vacuum packaging machine, also known as chain driven vacuum packaging machine, is a kind of packaging equipment that uses chain drive to work continuously. When the machine works, it will automatically cover for vacuum and sealing, and the vacuum cover will automatically pop up to output products, eliminating the need for manual lifting.

Technical Parameters

Model	GDBZ-540S	GDBZ-540D	GDBZ-560S	GDBZ-560D
Size	1920x1630x960mm	1920x1630x960mm	1920x1950x960mm	1920x1800x960mm
Working room	540x1220x115mm	540x1220x115mm	680x1220x140mm	610x1220x140mm
Sealing length	1100mm	1100mm	1100mm	1100mm
Bag max length	Single 420mm	Double 2100mm	Double 280mm	Double 250mm
Bag max height	90mm	100mm	90mm	90mm
Speed	2-10times/min	2-10times/min	2-10times/min	2-10times/min
Power	4.5kw	4.5kw	7.5kw	7.5kw
Weight	600kg	600kg	600kg	600kg
Absolute vacuum	Less than1.0kpa	Less than1.0kpa	Less than1.0kpa	Less than1.0kpa
Tilt angle	0,10,20,30 degree	0,10,20,30 degree	0,10,20,30 degree	0,10,20,30 degree
Lifting motor	70 type	70 type	70 type	70 type
Main appliance	PLC	PLC	PLC	PLC
Configuration	Single envelope	Double envelope	Double envelope	Double envelope

Detailed Images

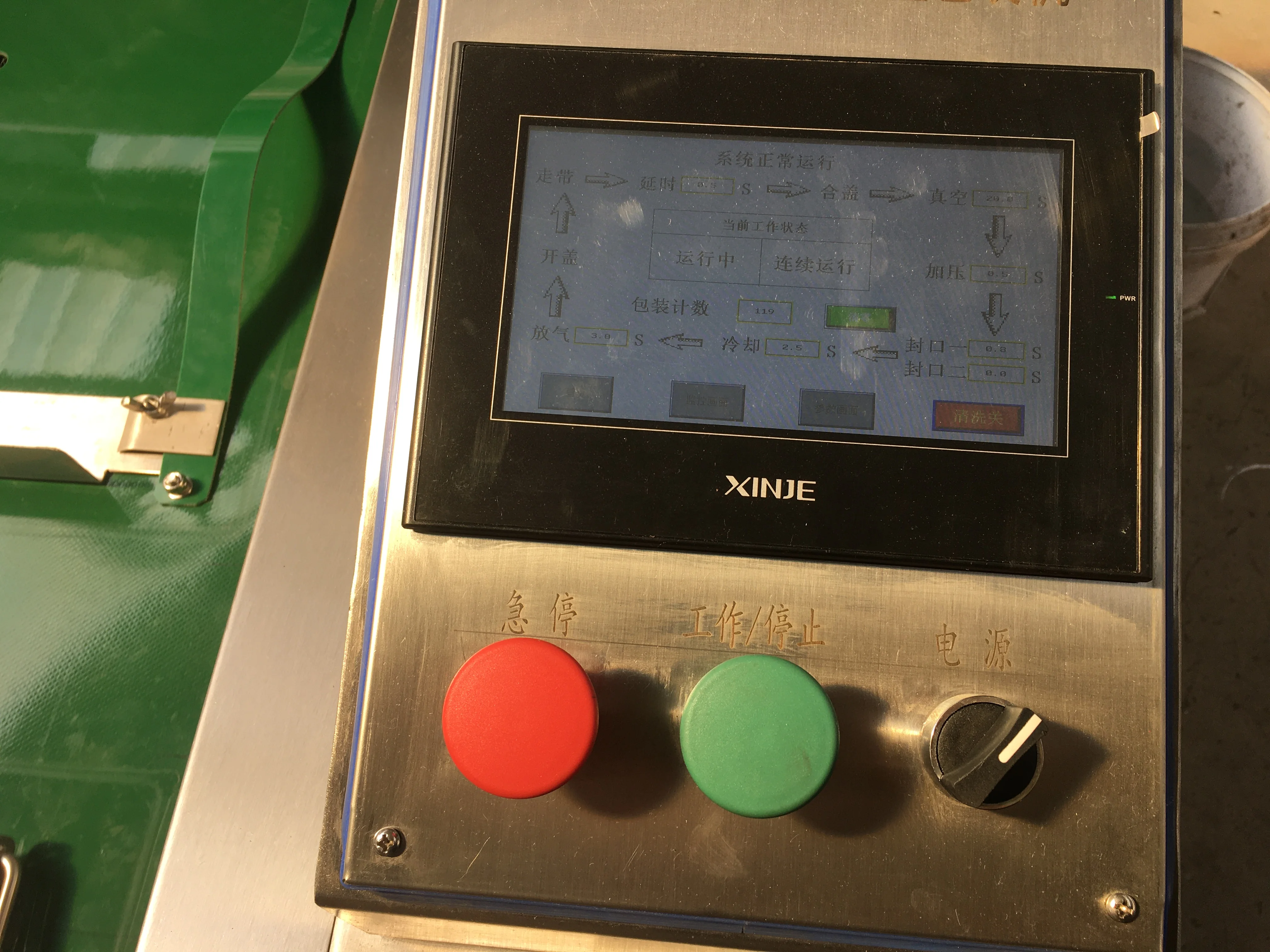

Control switch

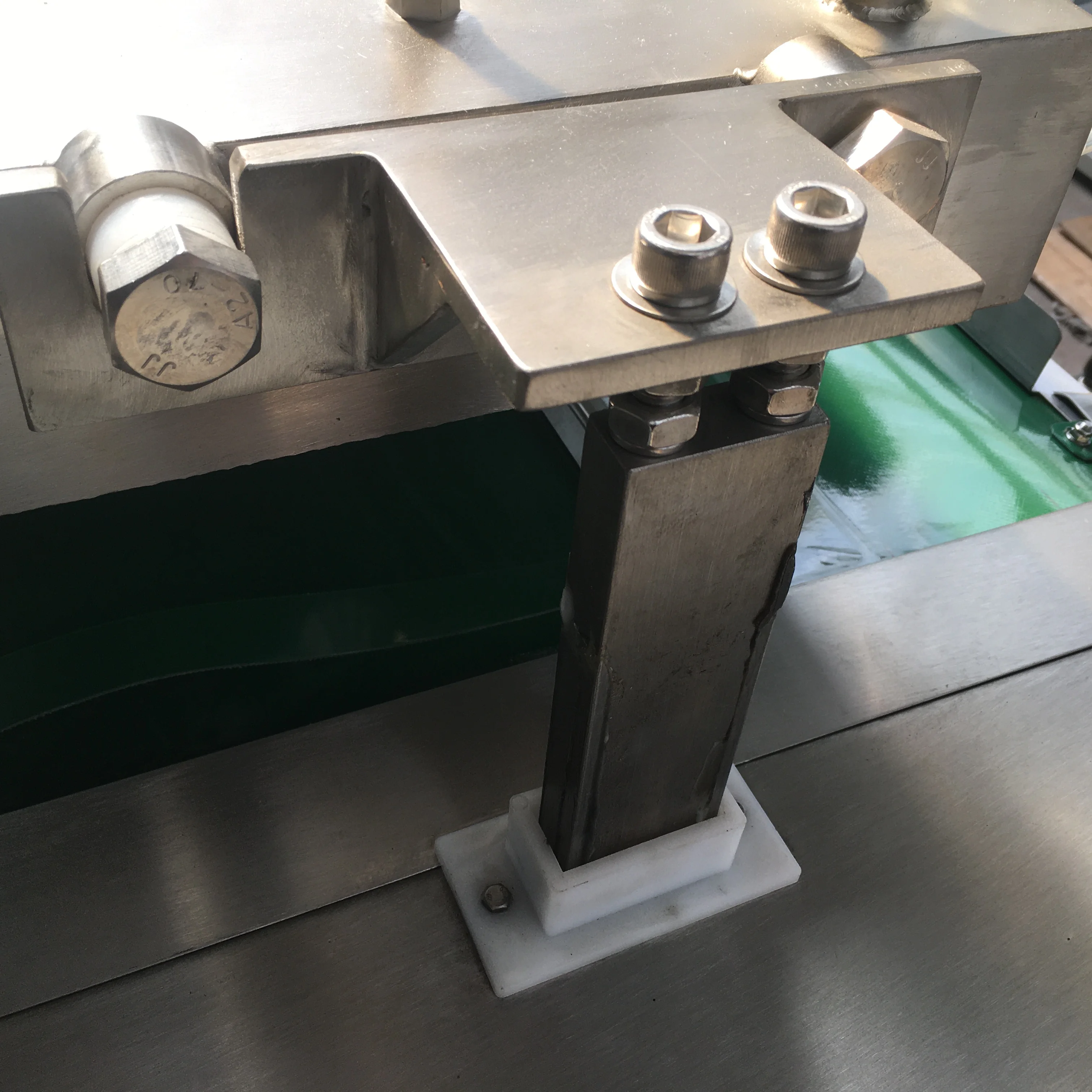

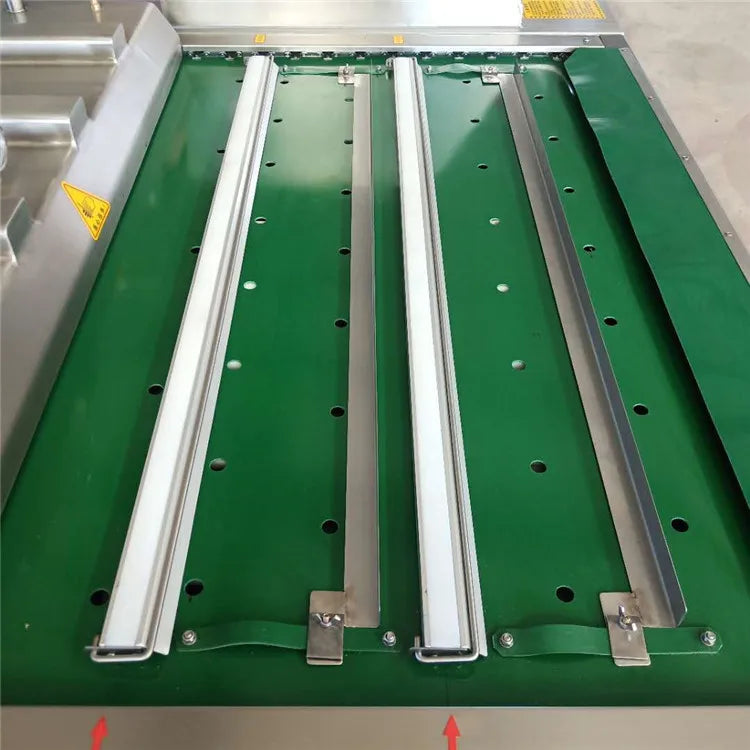

Stainless steel

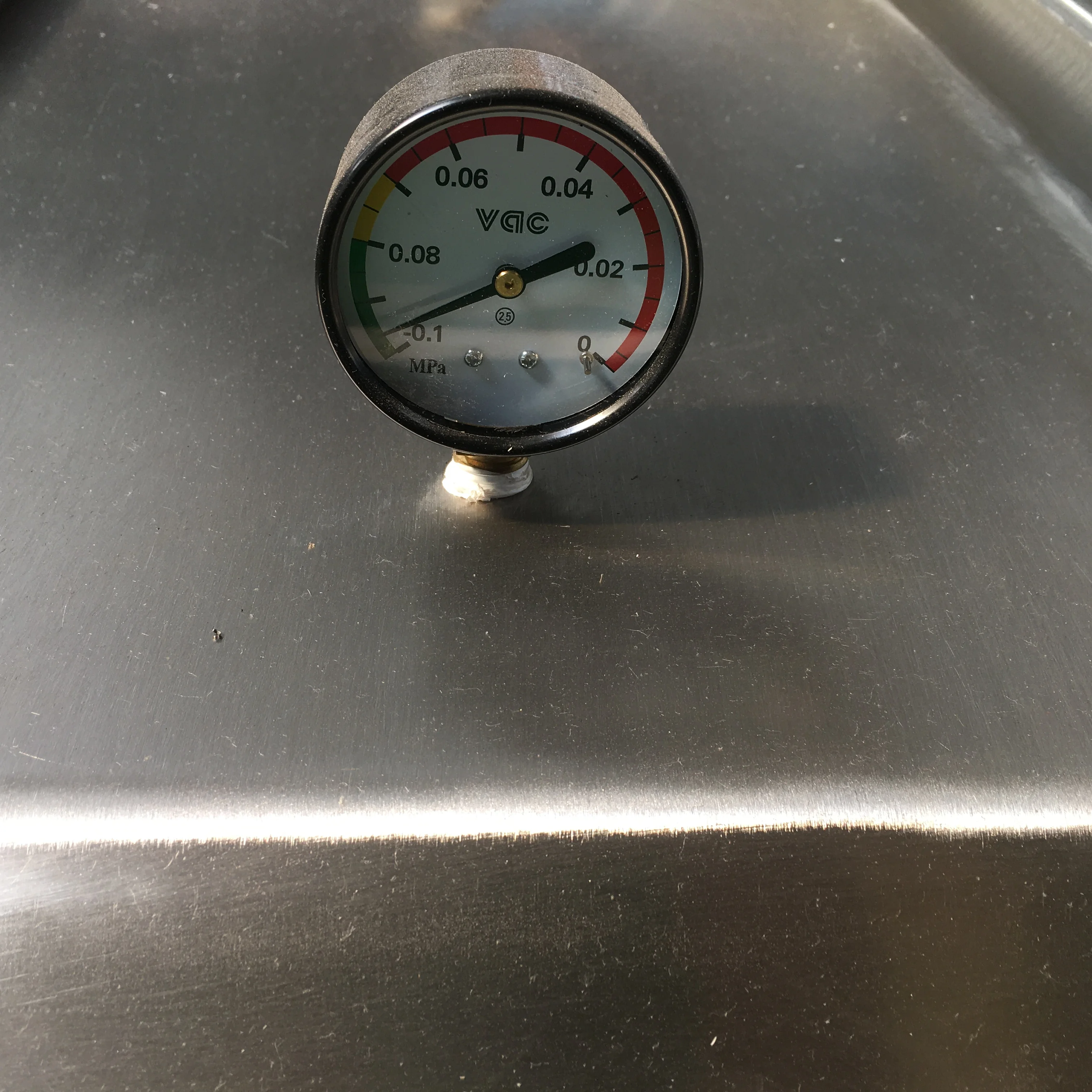

Pressure gauge

Application range

Packaging & Shipping

PACKAGE:
Packed in standard export wooden cases.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Company Information

FAQ

Q:Are you a trading company or a factory?
A:We are a factory with more than 10 years of experience in food machinery technology.
Q:How do you guarantee the quality of the machine?
A: We have export experience for 6 years and customers who bought our machine have tested the machine before it was shipped .
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Shandong, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A: Yes, we will send you the contract, packing list and bill of lading, and we will also meet your other requirements.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
Q: What is the warranty period for the equipment?
A:One year upon you receive the goods.
